Citin 32kW Gas Boiler High Efficient Combi Boiler for Heating 200㎡ L1PB32-4T
Brand Citin
Product origin 中国
Delivery time 2025
Supply capacity adequate
Model: L1PB32-4T
Professional-grade dual-function boiler for heating 140-200㎡ spaces and supplying domestic hot water. Features 90% thermal efficiency, LED display, membrane touch controls, and sleek white housing.
| Model: L1PB32-4T | Heating Temperature Range: 30-80℃ | Hot Water Production Capacity(Δt=25℃): 16kg/min |
| Power: 32kW | Gas Consumption(Min to Max): 1.1-3.3m³/h | Hot Water Production Capacity(Δt=30℃): 14kg/min |
| Thermal Efficiency: 90% | Domestic Hot Water Pressure: 0.02-0.6Mpa | Heating for Water Pressure: 0.1-0.3Mpa |
| Power Supply: 220V/50Hz | Minimum Water Flow: 3.7L/min | Scope of Heating: 140-200㎡ |
| Chimney Diameter: 60/100mm | Dimensions: 740*510*325mm | DHW Temperature: 30-60℃ |
Citin 32kW Gas Combi Boiler - Reliable Heating & Hot Water for 140-200㎡
Model: L1PB32-4T
Precision-Engineered Dual Functionality
Designed for residential and light commercial use, the Citin 32kW Gas Boiler provides simultaneous space heating (140-200㎡ coverage) and domestic hot water with 90% thermal efficiency. Features electronic temperature control.
Certified Technical Specifications
Output & Efficiency:
Heating Capacity: 32kW
Thermal Efficiency: 90%
Gas Consumption Range: 1.1-3.3m³/h (Natural Gas)
Heating Water Temperature: 30-80℃
Domestic Hot Water (DHW) Performance:
Flow Rate (Δt=25℃): 16kg/min
Flow Rate (Δt=30℃): 14kg/min
DHW Temperature Range: 30-60℃
Minimum Activation Flow: 3.7L/min
Pressure Compatibility:
Heating System Pressure: 0.1-0.3MPa
DHW Pressure Range: 0.02-0.6MPa
User-Focused Design

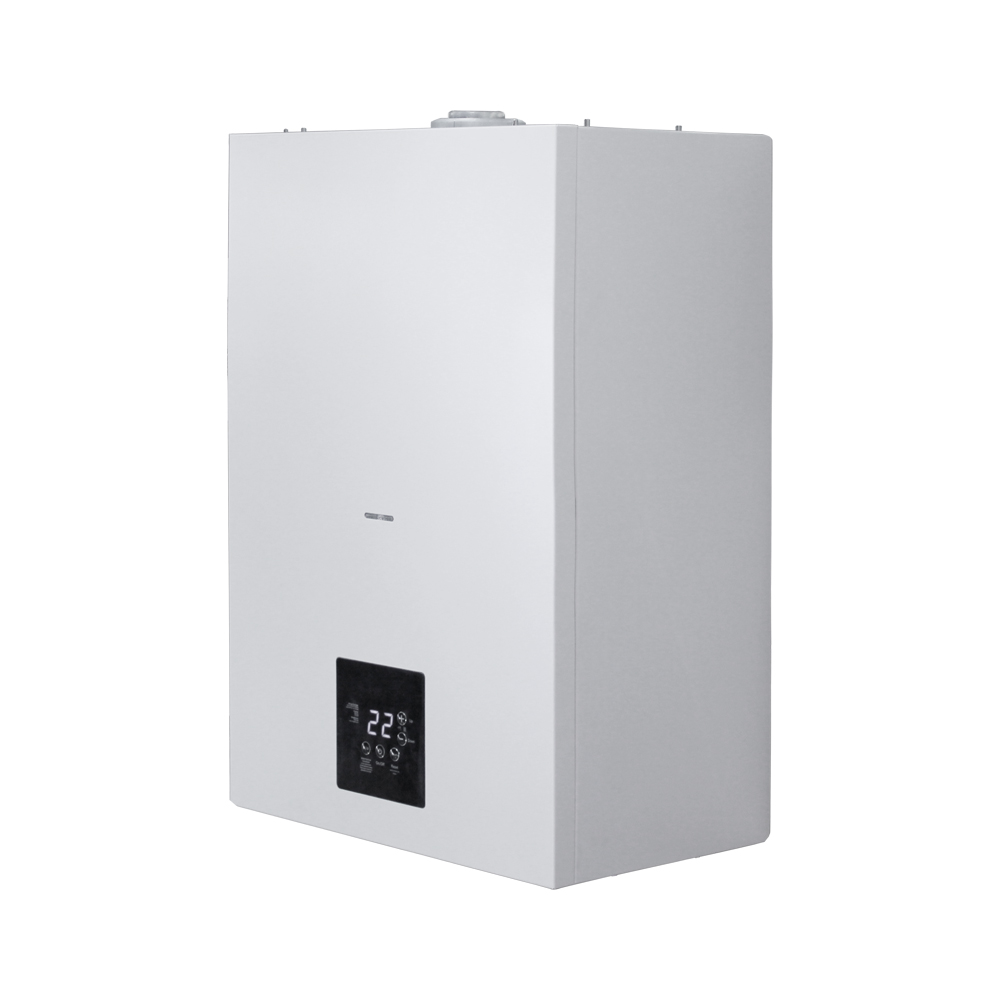

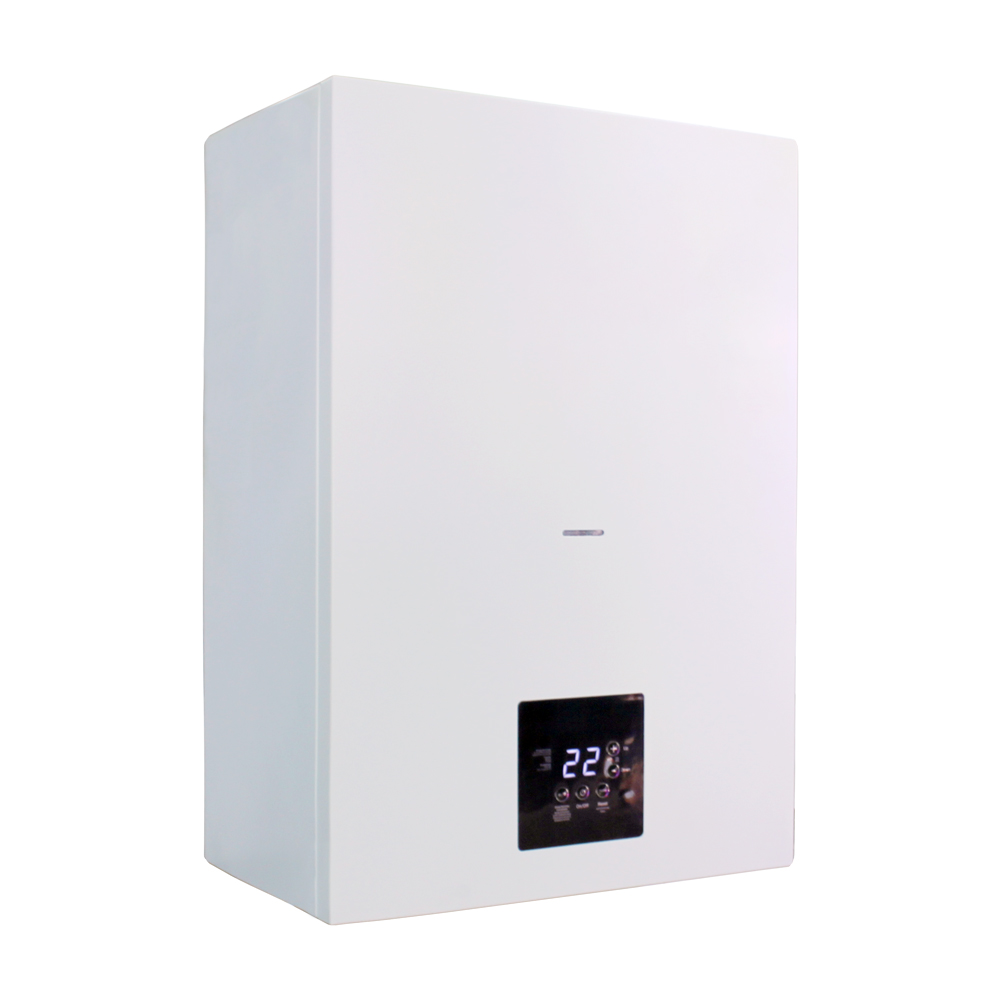

✓ Sleek White Housing: Scratch-resistant finish for lasting aesthetics

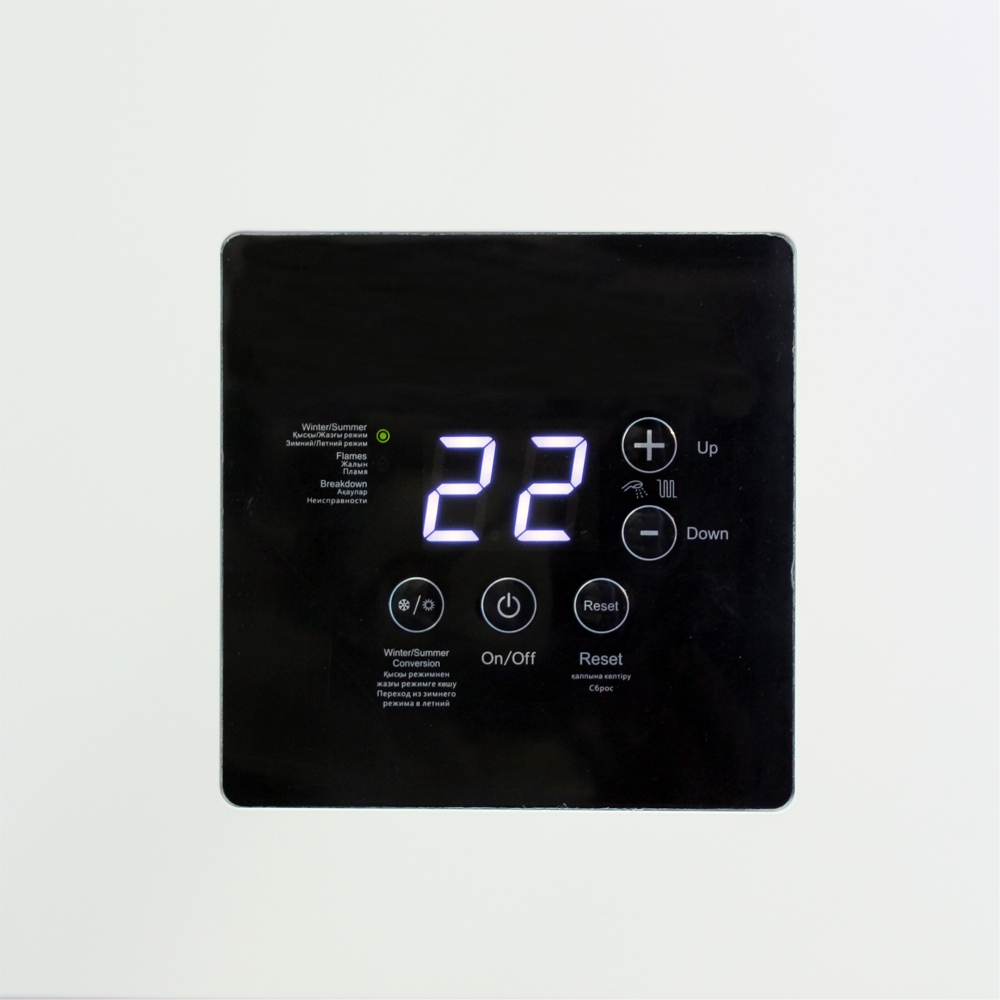

✓ Intuitive Controls: LED display + membrane touch buttons for precise temperature adjustment
✓ Compact Dimensions: 740×510×325mm chassis with dual 60/100mm chimney options
✓ Auto Diagnostics: Error code display for quick troubleshooting
✓ Multi-Protection System: Overheat shutdown, flame failure detection, anti-freeze mode (activates below 5℃)
